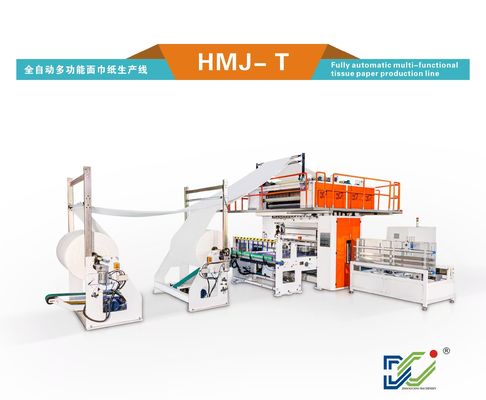

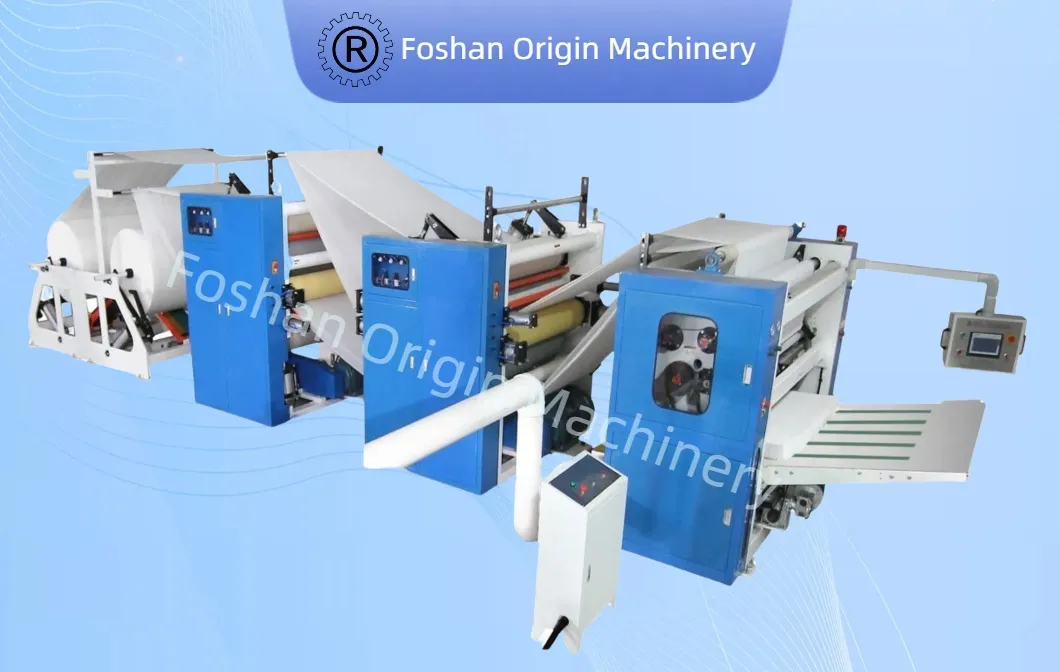

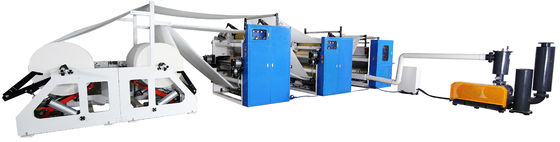

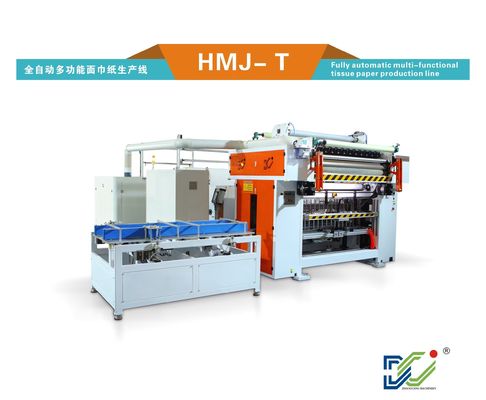

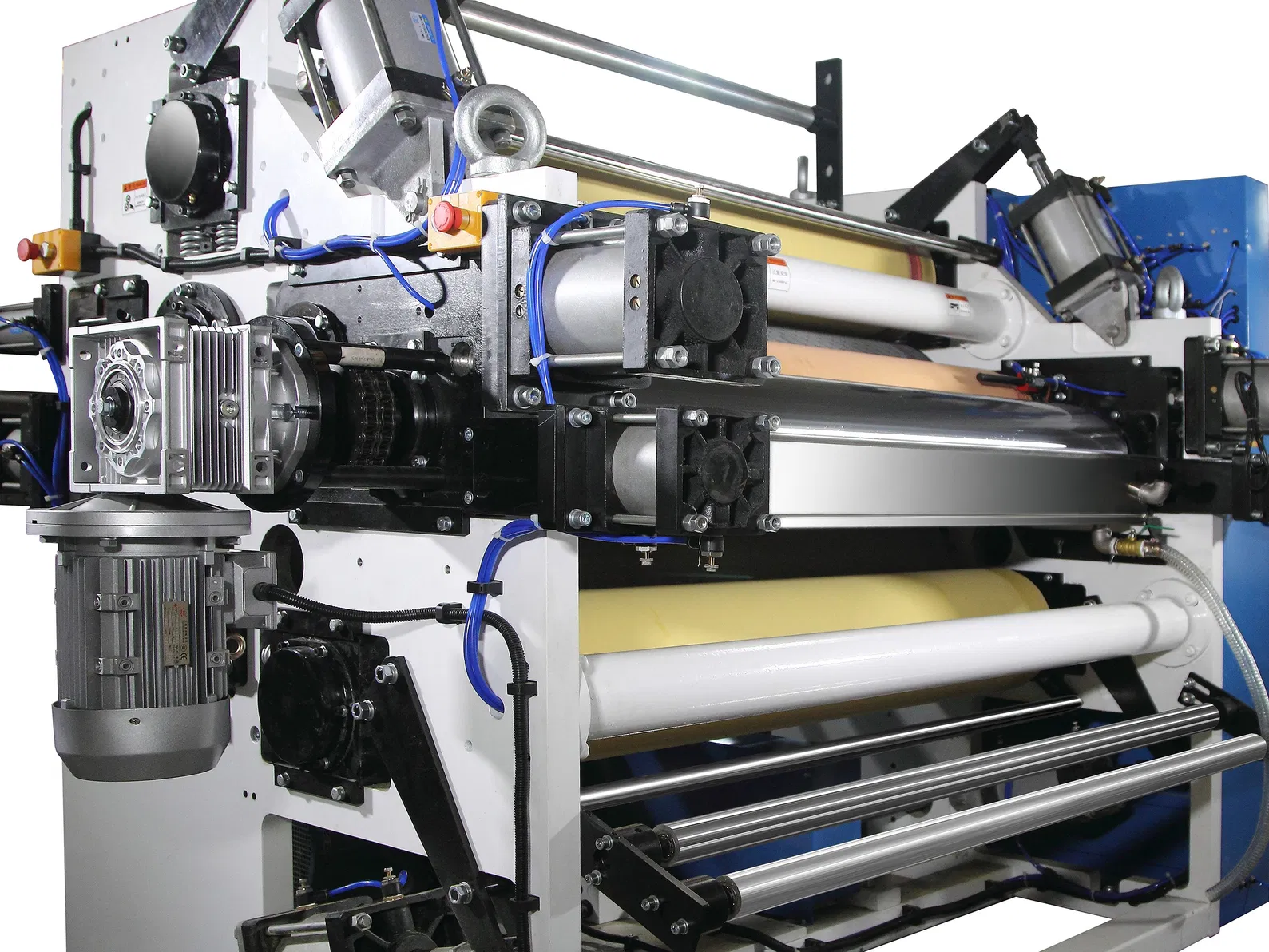

Glue Lamination Unit & Steel To Steel Embossing Unit V Fold Facial Tissue Folding Machine With Auto Transfer
|
|
Détails sur le produit:
Conditions de paiement et expédition:
|
Description de produit détaillée
| Type de pliage: | Vation en V | Taille pliante: | 200 mm (confirmé par le client) |
|---|---|---|---|
| Jumbo Roll GSM: | Tissu facial: 15/17 gm*2 couches | Méthode de pliage: | Pliage de vide |

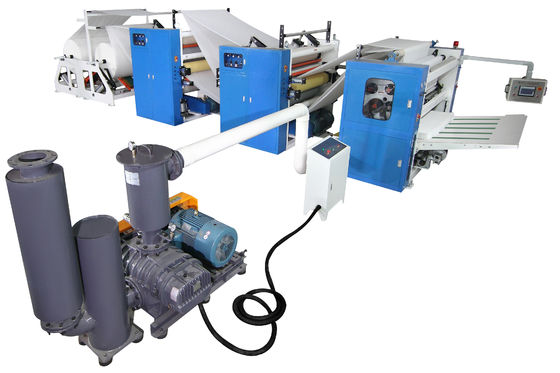

| Pompe à vide: | Pompe à vide de racines | Système de conduite: | Convertisseurs de moteurs et de fréquences individuels |
| Type de gaufrage: | Acier à l'acier ou en acier au caoutchouc | Garantie: | D'un an |
| Vitesse de travail: | 110 mètres/min-130 mètres/min | Transfert automatique: | Facultatif |
| Plastification de colle: | Facultatif | ||
| Mettre en évidence: | glue lamination unit facial tissue machine,steel to steel embossing unit machine,auto transfer v fold tissue machine |
||
Product Description
Foshan Origin Machinery Co., Ltd.
Foshan Origin Machinery Co., Ltd is based in Foshan city - the China technology heart of tissue paper industry. We have been specializing for over 30 years in the design and manufacture of converting machinery for the tissue industries.
Our machinery range includes: Roll products rewinding machines, Facial tissue folding machines, Napkin machines, Pocket tissue machines, N/M fold paper towel machines, Packing machines and other related machines.
Foshan Origin Machinery Co., Ltd is based in Foshan city - the China technology heart of tissue paper industry. We have been specializing for over 30 years in the design and manufacture of converting machinery for the tissue industries.
Our machinery range includes: Roll products rewinding machines, Facial tissue folding machines, Napkin machines, Pocket tissue machines, N/M fold paper towel machines, Packing machines and other related machines.
Machine Features:
1. Equipped with glue lamination system, ideal for producing high-end value-added tissues such as V fold kitchen towels and hand towels. Produces fluffy, highly absorbent paper towels.
2. Utilizes high-precision engraved embossing rollers to create vivid, three-dimensional patterns. The roller surface is smooth and burr-free, ensuring well-defined and durable pattern formation.
3. Features an automatic circulating glue application system with adjustable glue dosage control, precise and even glue application.
| Machine Model | HMJ-XL |
| Parent Roll Width | 1500/2000/2800 mm (to be confirmed by customer) |
| Parent Roll diameter | ≤1500mm |
| Unwinder driving | Independent frequency driving, consistent unwinding web tension. |
| Folding function | 4-roll folding |
| slitting Sheet size | 175 / 180/190/200/210mm (to be confirmed by customer) |
| Sheet slitting structure | Sprial slitting blades |
| Counting | pneumatic log shfiting / ink mark |
| Embossing (options) independent drive |
Multiple specifications 4-sides position embossing Edge-embossing Glue lamination Glue free lamination steel to rubber/felted/woolen /steel roller |
| Designed speed | 130m/min |
| Prodution speed | 100m/min |
| Driving system | Independent variable frequency drives for each functional unit |

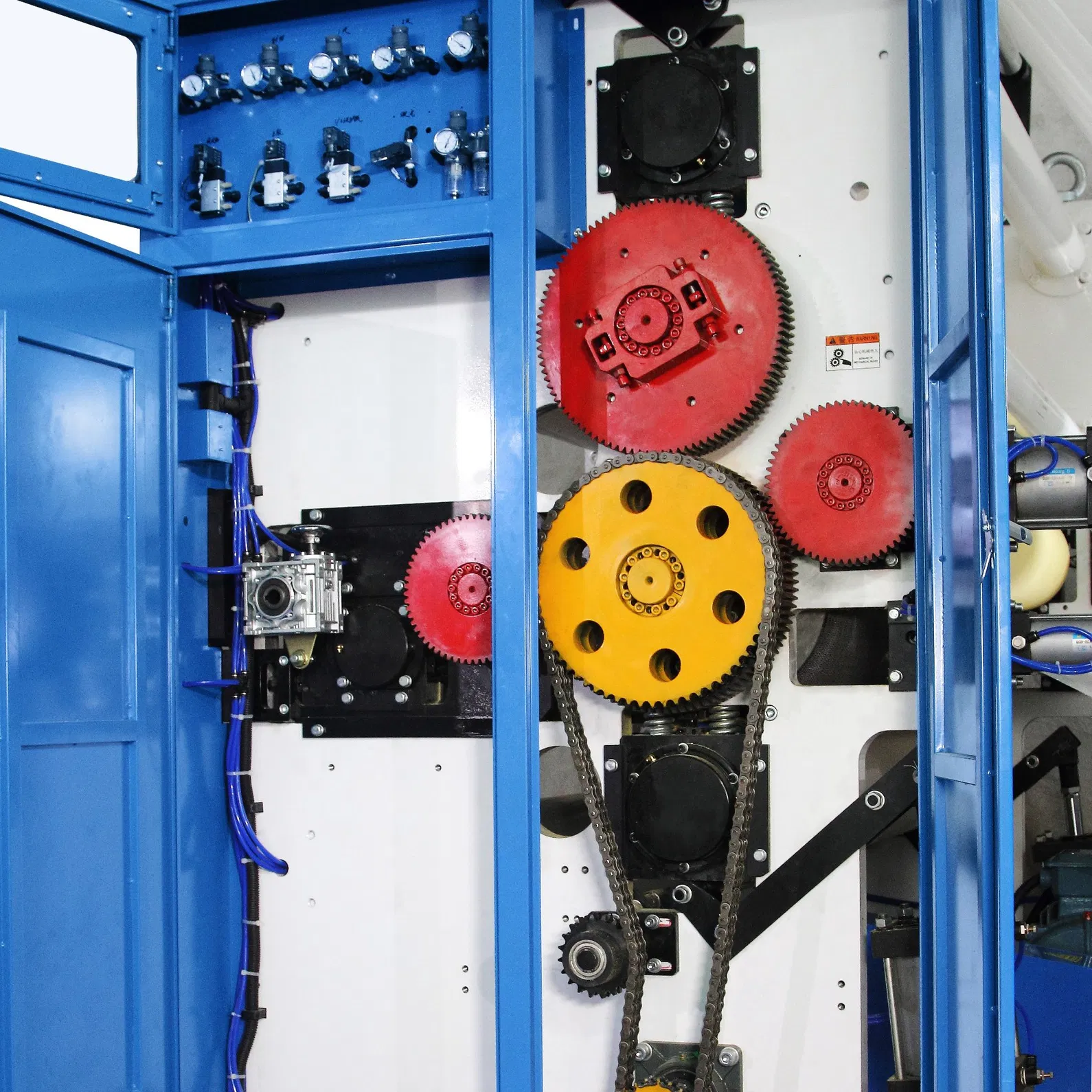

- Individual driving system
Lamiantion system

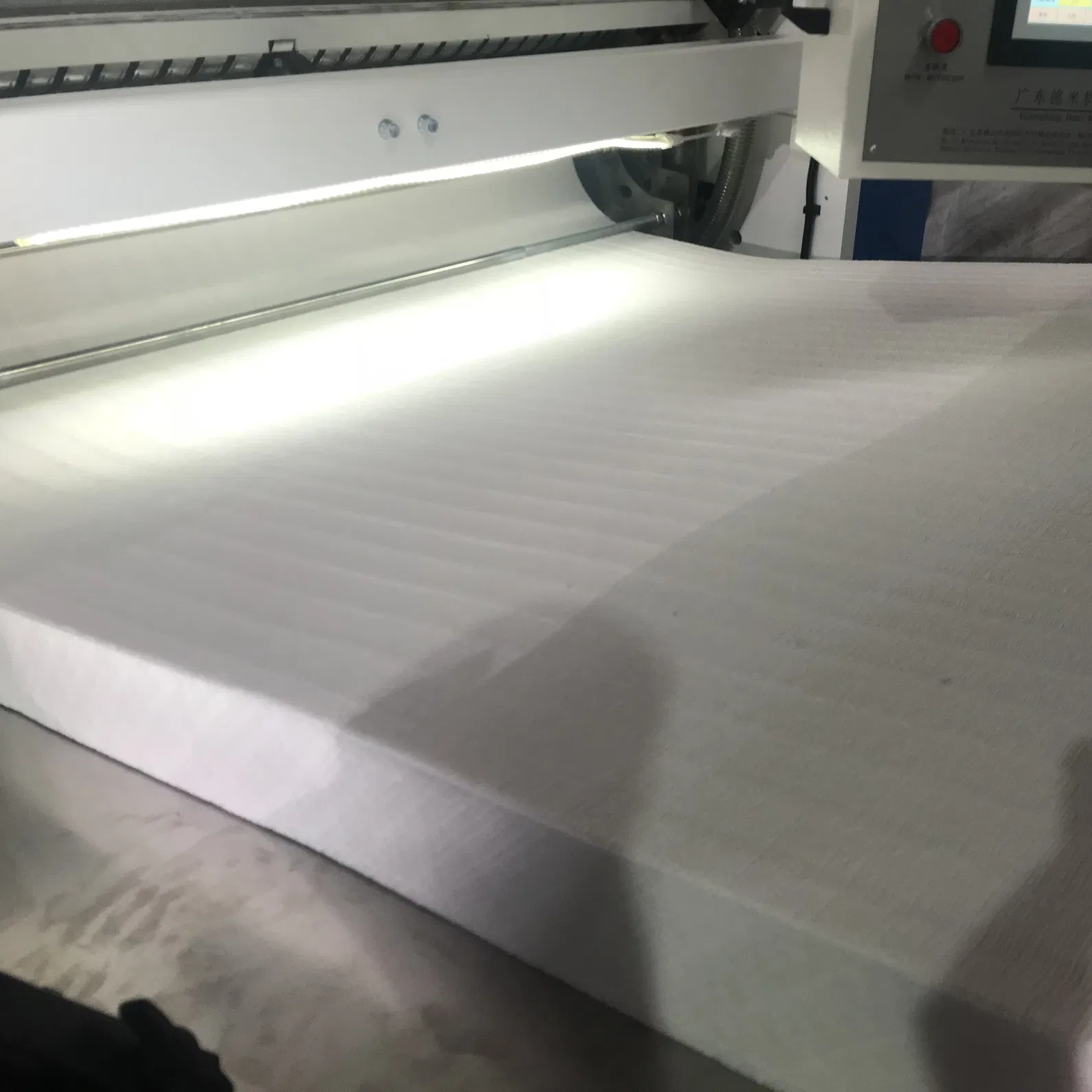

3. Tissue output
